IPX1 - IPX2 Rain Spray Test Instrument
|
IPX1 - IPX2 Rain Spray Test Instrument |
|
|
Introduction |
IPX1&IPX2 rain spray test instrument is used to test the sealing and water-proof property for external lighting, signal device, vehicle lamps shell protection. It provides a realistic water spray simulation condition of electronic products and components. |
|
Application |
Automobile lamps and lanterns, wipers, waterproof strip, motorcycles instrument performance, low voltage electrical appliances shell protection of waterproof performance. |
|
According to |
IEC 60529-2001:14.2.1 and IEC 60529-2001:14.2.2 |
|
Item |
Drip Box |
|
Model |
LU-1700 |
|
Internal Size |
1200 * 1200 * 1200 mm (D * W * H) |
|
Product Weight (G.W.) |
620 kg |
|
IPX1~IPX2 Technology Parameter |
|
|
Drip tray size |
1000 * 1000 * 150 mm (D * W * H) |
|
Rainfall capacity |
IPX1: 1 ±0.5mm/min, IPX2: 3 ±0.5mm/min (Rainfall intensity is adjustable) |
|
Water dripping hole diameter |
ø 0.4 mm |
|
Hole distance |
20 mm |
|
Rotary table size |
600 * 600 mm |
|
Rotary table angle |
15~45° |
|
Rotary table rotate speed |
1~10 rpm/min (adjustable) |
|
Rotary table load-bearing |
≤30KG |
|
Test of time |
15 min or setting (Reflected in the centralized control system) |
|
Pump water supply |
1.5-15L/min |
|
Drip Test Flume |
The height of Drip Test Flume can be automatically lifted, lifting height: 600mm (calculate it from the table-board to the water drip with 200mm position) |
|
Default test time |
0~ 999 (S/min/h adjustable) |
|
Power |
220V 50/60Hz |
IEC 60529-2001:14.2.1
14.2.1 Test for second characteristic numeral 1 with the drip box
The test is made with a device which produces a uniform flow of water drops over the whole area of the enclosure.

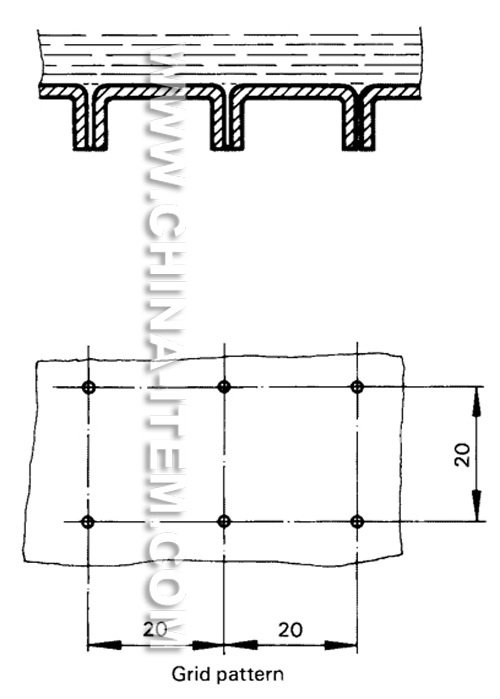

An example of such a device is shown in figure 3 a).
The turntable on which the enclosure is placed has a rotation speed of 1 r/min and the eccentricity (distance between turntable axis and specimen axis) is approximately 100 mm.
The enclosure under test is placed in its normal operating position under the drip box, the base of which is larger than that of the enclosure. Except for enclosures designed for wall or ceiling mounting, the support for the enclosure under test should be smaller than the base of the enclosure.
An enclosure normally fixed to a wall or ceiling is fixed in its normal position of use to a wooden board having dimensions which are equal to those of that surface of the enclosure which is in contact with the wall or ceiling when the enclosure is mounted as in normal use.
The duration of test is 10 min.
NOTE: When the base of the drip box is smaller than that of the enclosure under test, the lati into several sections, the area of each section being large enough to be covered by the dripping continued until the whole area of the enclosure has been sprinkled for the specified time.
IEC 60529-2001:14.2.2
14.2.2 Test for second characteristic numeral 2 with the drip box
The dripping device is the same as specified in14.2.1 adjusted to provide the water flow rate specified in table 8.
The table on which the enclosure is placed does not turn as in the case of the test for the second characteristic numeral 1.
The enclosure is tested for 2,5 min in each of four fixed positions of tilt.
These positions are 150 on either side of the vertical in two mutually perpendicular planes (see figure 3b)).
The total duration of the test is 10 min.
