- IP34 Spray Nozzle, IEC60529 Jet Nozzle Tester, IEC 60529 Spray Nozzle, IPX3/IPX4
- Item LX-IPX3/4
Introduction:
It's strickly designed according to IEC60529, GB4208, ect. It's used to test the waterproof performance of appliance and electric appliance with the rain protection function.
Application:

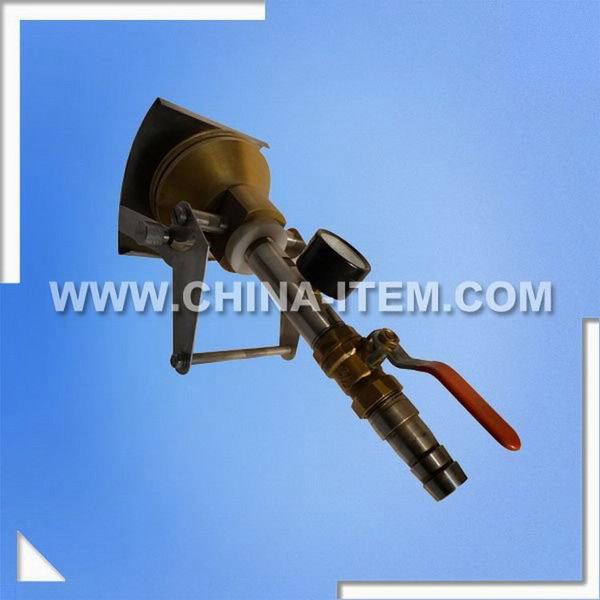

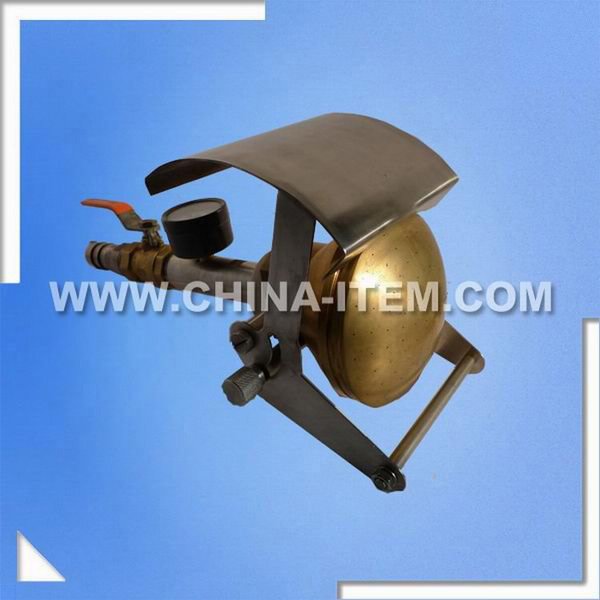

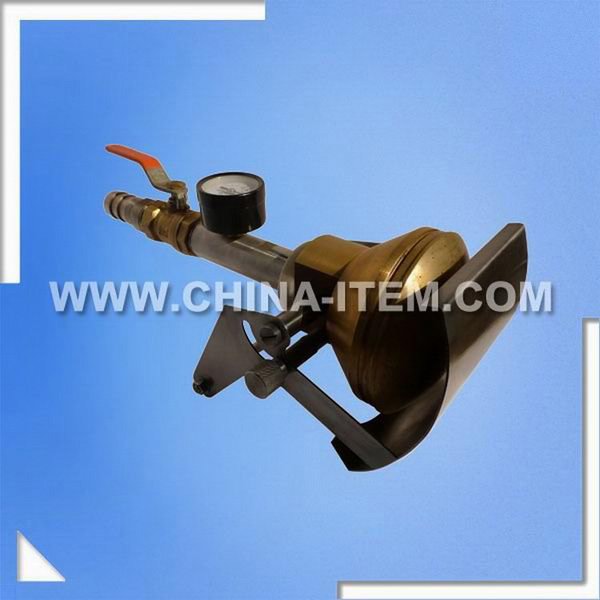

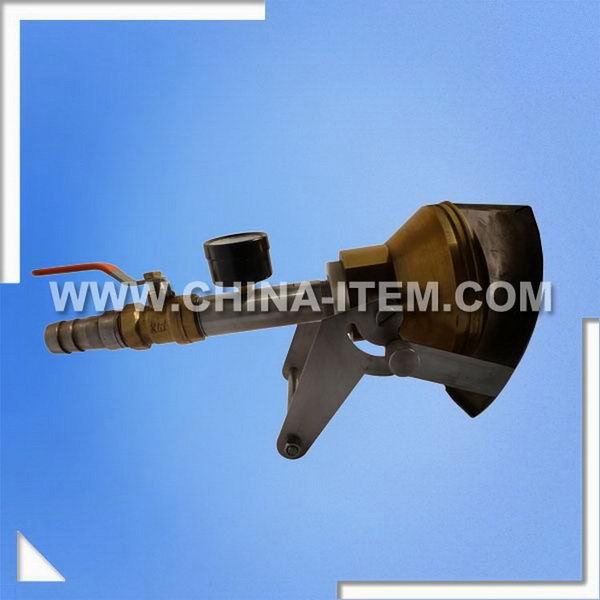

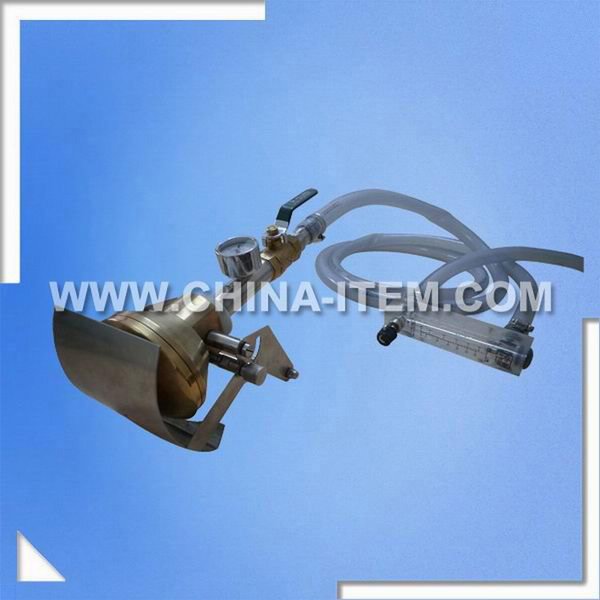

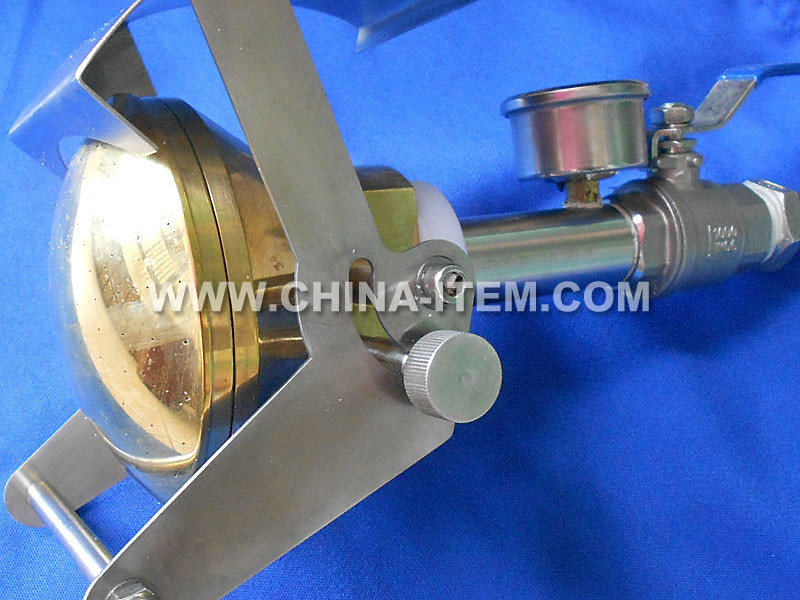

The Spray Nozzle Tester IPX3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.

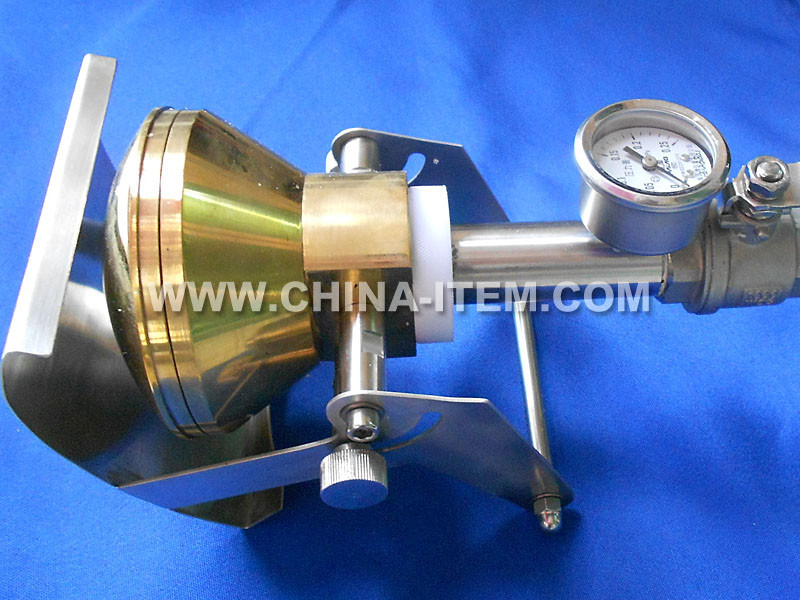

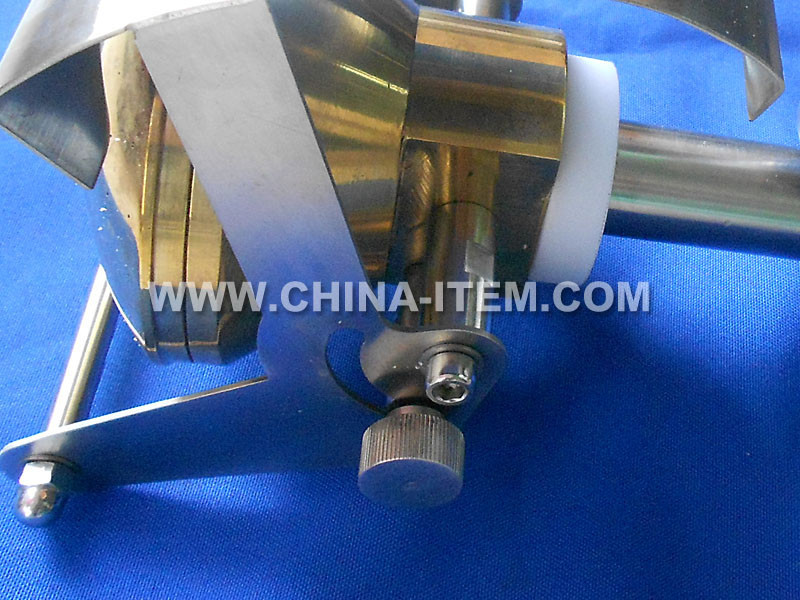

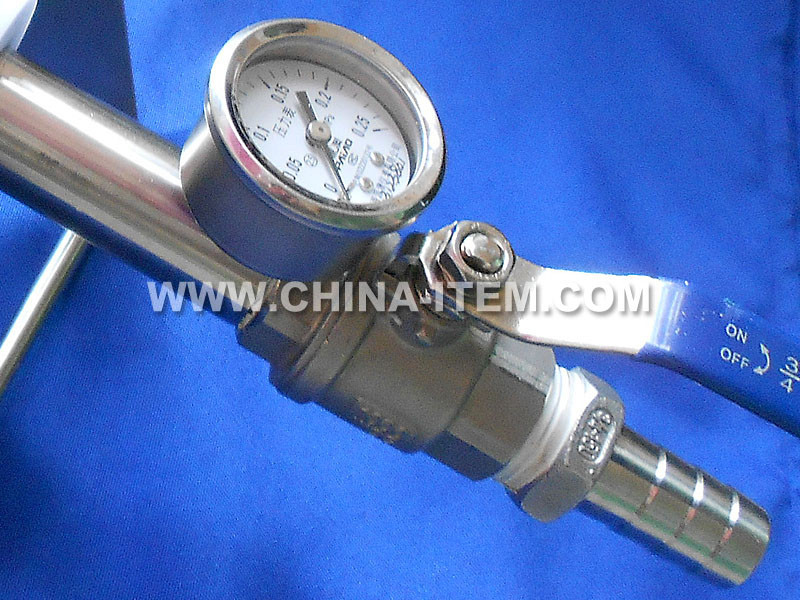

The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IPX3/4. The removable shield feature make it easy to test without the inferference of the shield.
Lab and Factory Equipment IEC60529 IPX3/4 Handle-Held Jet Spray Nozzle Water Test Kits
The Spray Tester IPX 3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
The pressure can be seen on the gauge which is
convenient positioned by the Spray Tester IPX 3/4.The spray pattern of
the nozzle is made to the specifications of IE60529. The removable
shield feature make it easy to test without the interference of the
shield .

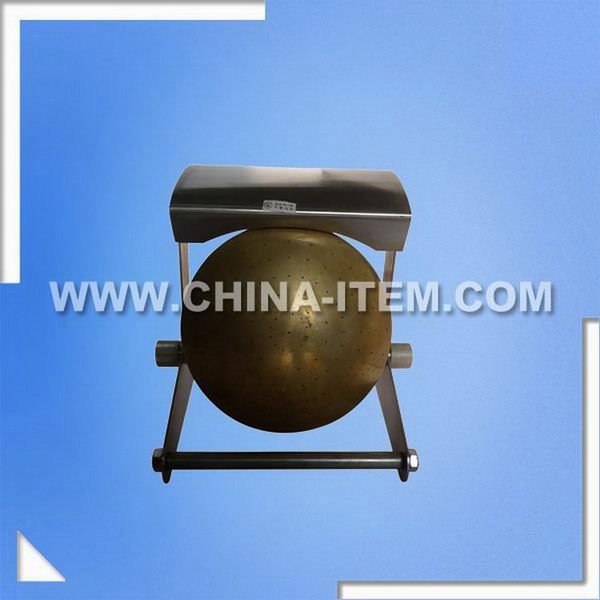

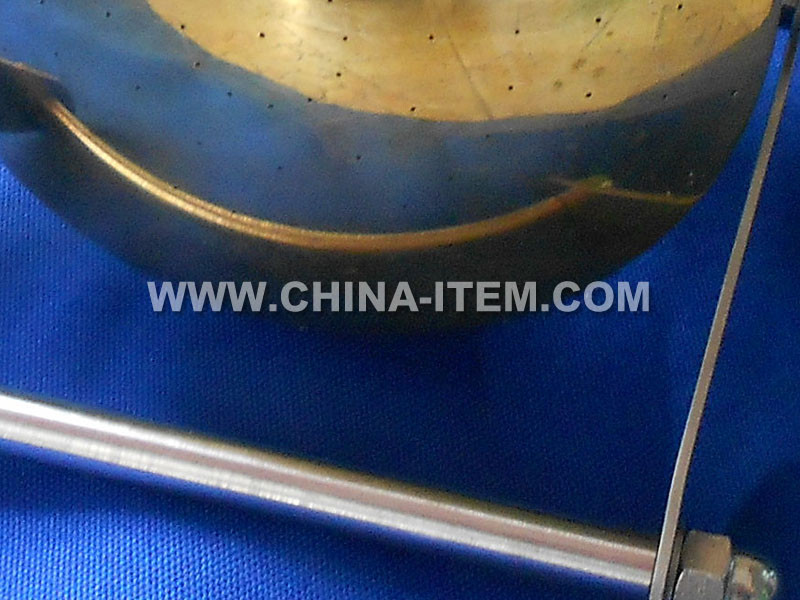

| Number of holes | Total 121 |
| Diameter of nozzle holes | 0.5 mm |
| Material | Spray nozzle made of brass |
| Pressure gage | 0 ~ 0.25Mpa |
| Water discharge | 10L/min, ±5%, can adjustment |
| Reference | IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1 |
| Nozzle diameter | 102 mm |
| Nozzle hole surface radian | 78° |
