- IEC 60529 Spray Water Test Nozzle, IPX5 IPX6 Water Jet Nozzle, Jet Nozzle for Test Protection Against Water Jets
- Item LX-IPX5/6
IEC60529 Spray water test Nozzle, IPX56 water Jet Nozzle

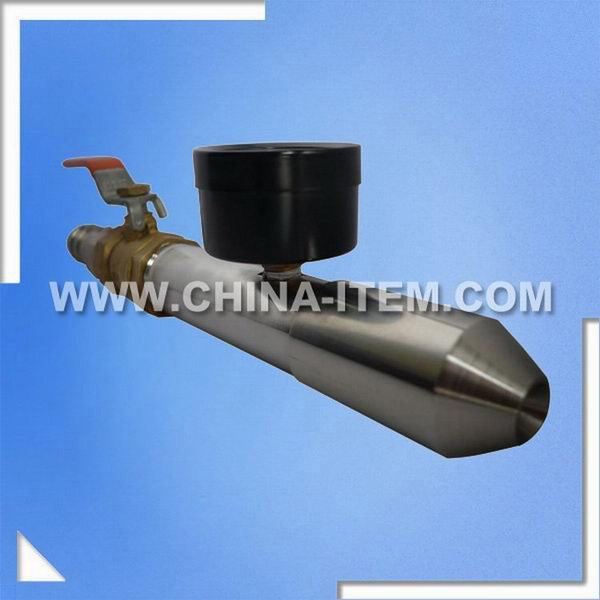

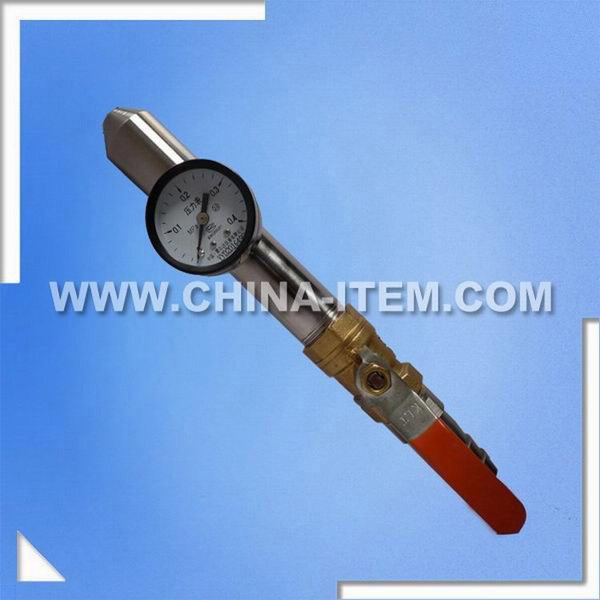

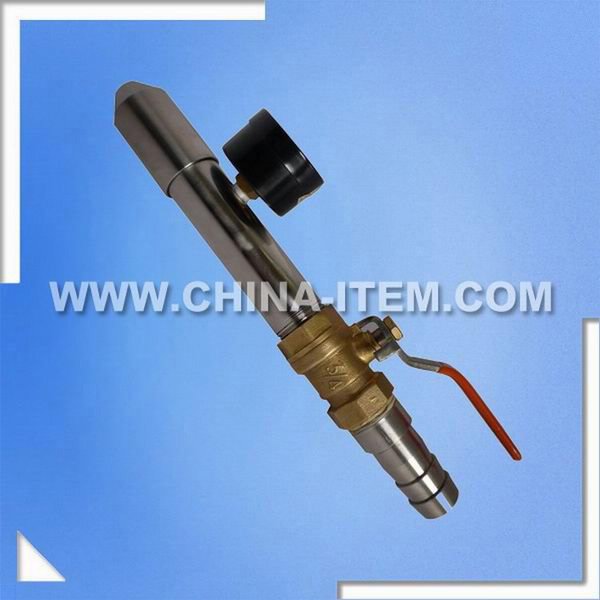

Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.

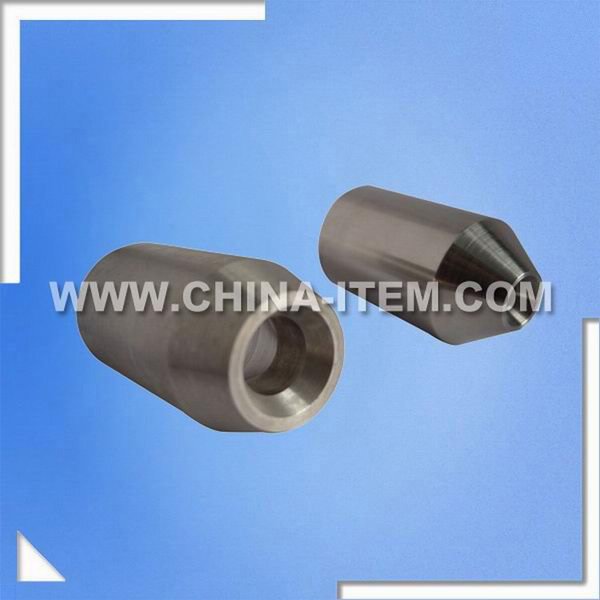

The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
| Item | IPX5 | IPX6 |
| Water supply |
Water
flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment. |
Water
flow rate > 100L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment. |
| The nozzle diameter | 6.3 mm | 12.5 mm |
| Water flow | 12.5±0.625L/min, Flow meter is adjustable. | 100±0.625L/min, Flow meter is adjustable. |
| Testing time | Not less than 1min/㎡(not less than 3 mins) | |
| Environment requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation. | |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Pressure Gauge | 0 - 2.5 bar ( 0 - 0.25 MPa ) | |
| Reference standards | IEC60529,IEC60598-1,IEC60335-1,IEC60745-1 | |
| Nozzle Material | Stainless Steel | |
| Include | Pressure gauge, Stainless steel nozzle IPX5 and IPX6, Valve for water flow regulation and shut off, Hose connector. | |
