- Flammability Ball Pressure Gauge Tester of Stainless Steel, Ball Pressure Test Device, IEC 60335 Ball Pressure Gauge
- Item LX-Q02
Ball Pressure Test Apparatus is designed and manufactured in compliance with IEC 60695-10-2, 60335-1, 60950-1, 60884-1, 60320-1, 60598-1, 61010, 61032, 60439-5, IEC 60601-1, BS 1363-1, IRAM 2073, 4220-1 NM, BIS, UL 2601-1, CSA 60745, VDE, BSI, DIN, EN.
Applicatiion:
Ball Pressure Test for Fire Hazard testing is used to test the heat resistance of non-metallic materials and solid electrical insulating materials except ceramics. Enclosures and other external parts of insulating material are subjected to the test. The ball pressure apparatus is designed to verify the quality and safety characteristics of products, as required by national & international standards.

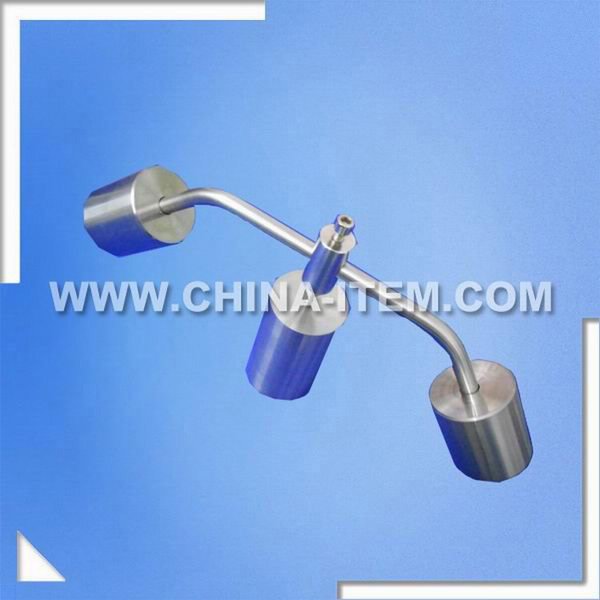

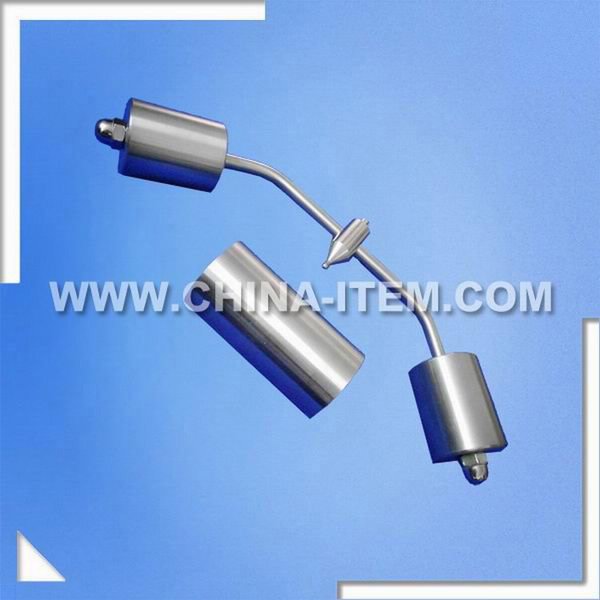

Construction:
- ball holder with bore and clamping screw for the bow
- Precision 5mm pressure ball
- Thermocouple for the test stand
- Nickel plated steel materials for good thermal stability
Technical Parameters:
| Ball diameter | 5mm (R2.5mm) |
| Total test pressure | 20N±0.2N |
| Samples bearing | diameter 50mm, length 100mm, solid stanless steel cylinder |
| Production of materials | all used stainless steel materials |
| Remark | Ball pressure instrument takes another a hot box (oven) supporting the use. |
Conforms to:
IEC60238, IEC60309, IEC60320, IEC60335, IEC60598, IEC60601, IEC60669, IEC60670, IEC60745, IEC60884, IEC60950, IEC60998, IEC61058, IEC61558.
Note: The ball pressure test instrument for the other needs a high temperature box(oven) supporting the use.
