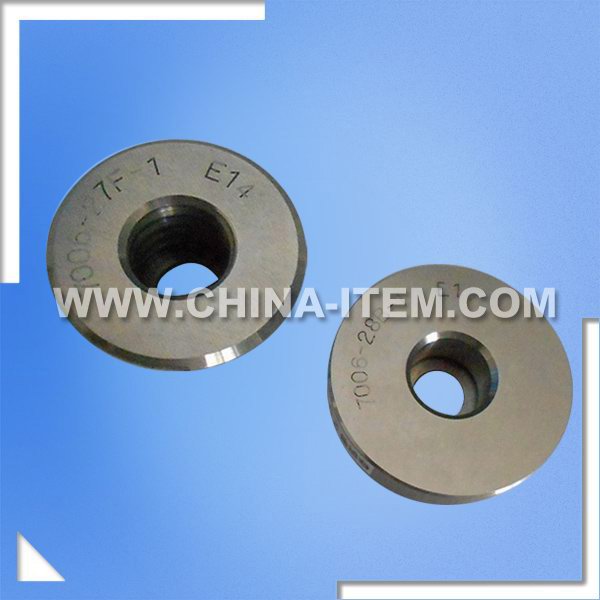

- IEC60061 E14 Go No Go Gauge, E14 Lamp Cap Go/No Go Gauge for 7006-27F-1 and 7006-28B-1
- Item LX-E14GN
Go gauge for E14 caps on finished lamps, 7006-27F-1
Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.
___________________________________________________________________
Not go gauge for E14 caps on finished lamps, 7006-28B-1
Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of caps E14 on finished lamps.
Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
