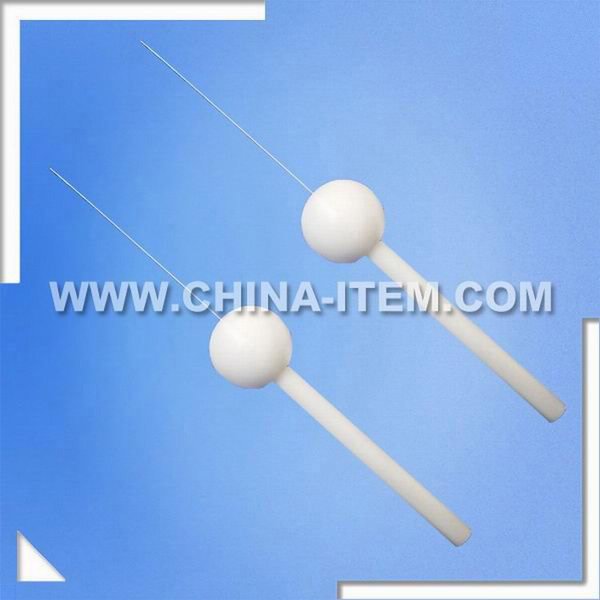

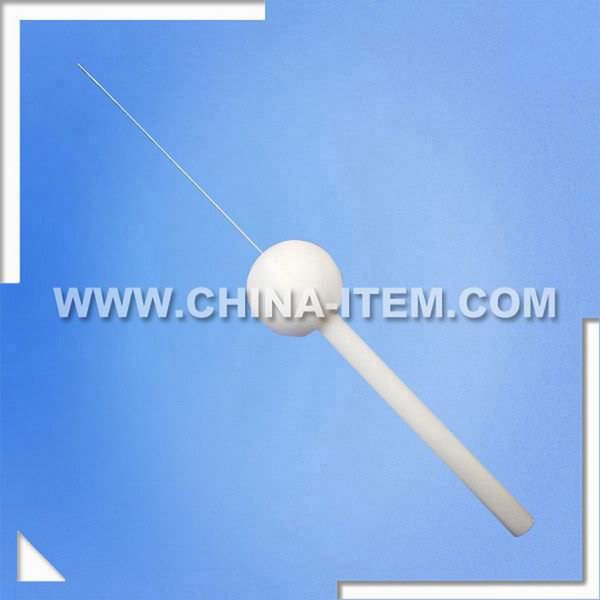

    IP4X Safety Test Finger IEC61032 Figure4 Test Probe D
  • Next





Basic Introduction:

1. According to: GB/T4208-2008 / IEC 61032:1997 / IEC 60529:2001 AND UL
2. IP4X Test Probe D ( Test Probe D) is necessary appliance for household and similar electrical appliance of against electric shock protection test.
Technical parameters:
1. Test Probe Length: 100mm
2. Test Prober Diameter: 1.0mm
3. Dam- sphere Diameter: 35mm
4. Handle Diameter: 10mm
5. Handle Length: 100mm

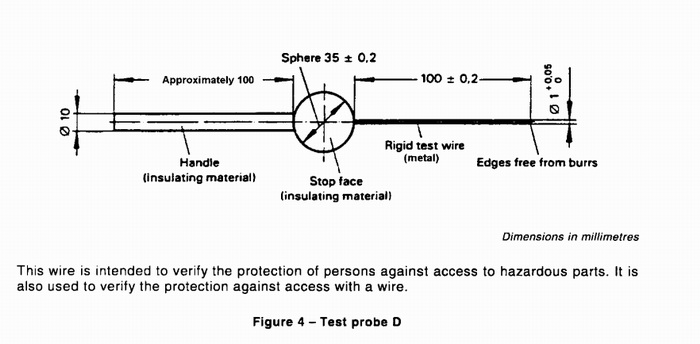

6. According to IEC 61032 figure 4 (the Test probe D), Table 6 GB/T4208-2008 (the first characteristic digital 4/5/6)
Application:
1. Standard test refers to the joint part can't touch the live parts or close to the dangerous parts, 30mm circular baffle can not be enter.
2. In the test requirement for preventing access to the hazardous parts, Test Probe D need to be with thrust 1±0.1N

Test Probe D

Company introduction


Shenzhen Julixing Instruments Co., Ltd.
are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
