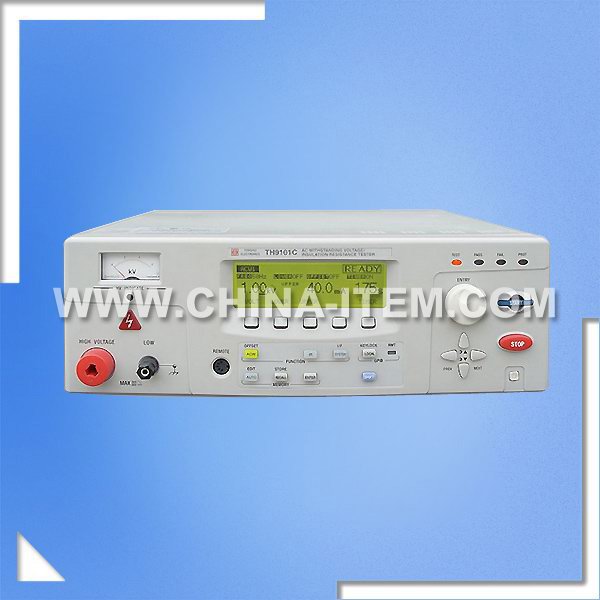

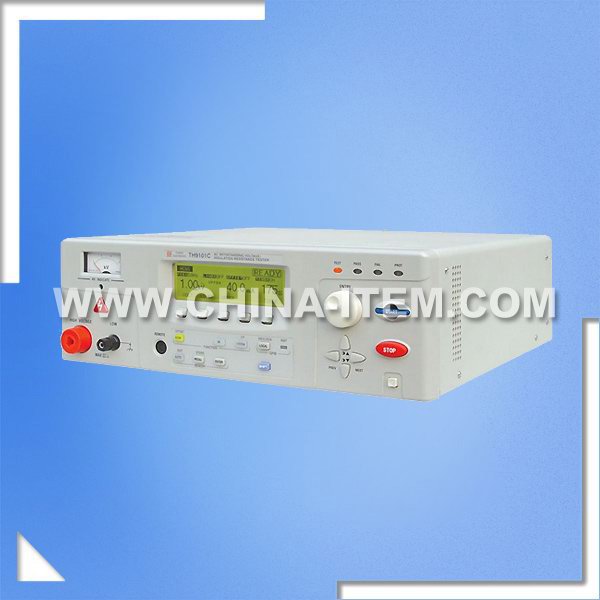

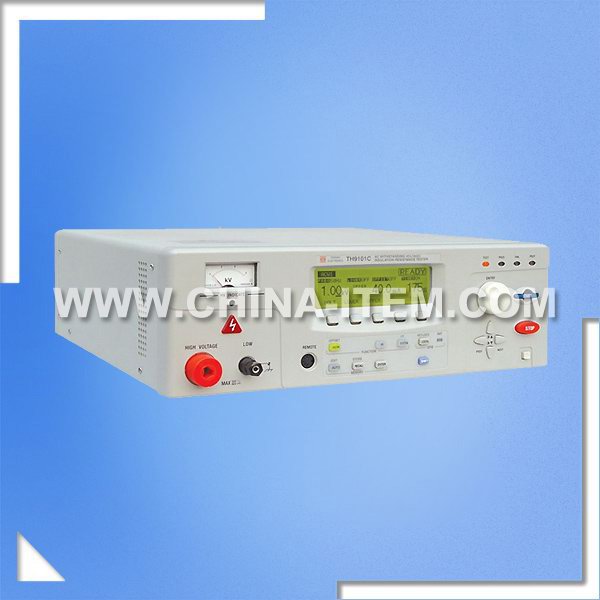

- TH9101C Hipot Insulation Tester, High Voltage Insulation Tester, Withstanding Voltage and Insulation Tester
- Item LX-9101C
| Hipot tester | Output voltage | AC |
0.05kv-5kv ±(1.0% reading +30V) (50Hz,60Hz selectable) |
| DC | ---- | ||
| Analogy voltage meter | 6KV AC/DC F.S ±5%F.S | ||
| Current test range | AC |
0.00mA-110mA (500VA) ±(3.0% reading+20uA)(After zeroing) |
|
| DC | ---- | ||
| Discharge function | ---- | ||
|
Insulation resistance test |
-25V-- -1000V | ||
| Resistance test range |
0.01MΩ--9.99GΩ,(Current range: 50nA-1mA) |
||
|
Resistance test accuracy |
500v-- 1000v |
0.01MΩ--1GΩ ±(10% reading+10 digits) 1GΩ--9.99GΩ ±(20% reading+10 digits) |
|
| Discharge function | Dischrage forcefully after testing | ||
| Specification | Voltage rise-time | 0.1s-200s | |
| Voltage fall-time |
0s-200s,(Oonly after AC withstanding voltage PASS) |
||
| Voltage wait-time |
0.3s-10s(Only DC withstanding voltage, and rise time+test time>wait time) |
||
| Test time setting | 0.1s-999s(TIMER ON) | ||

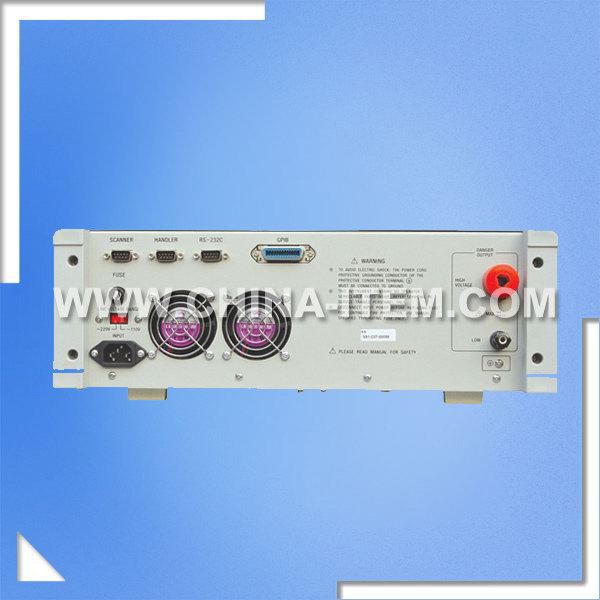

| Interface | Standard accessary |
HANDLER,RS232,SCANNER, REMOTE |
|
| Options | GPIB,TH90005,TH9121 |
